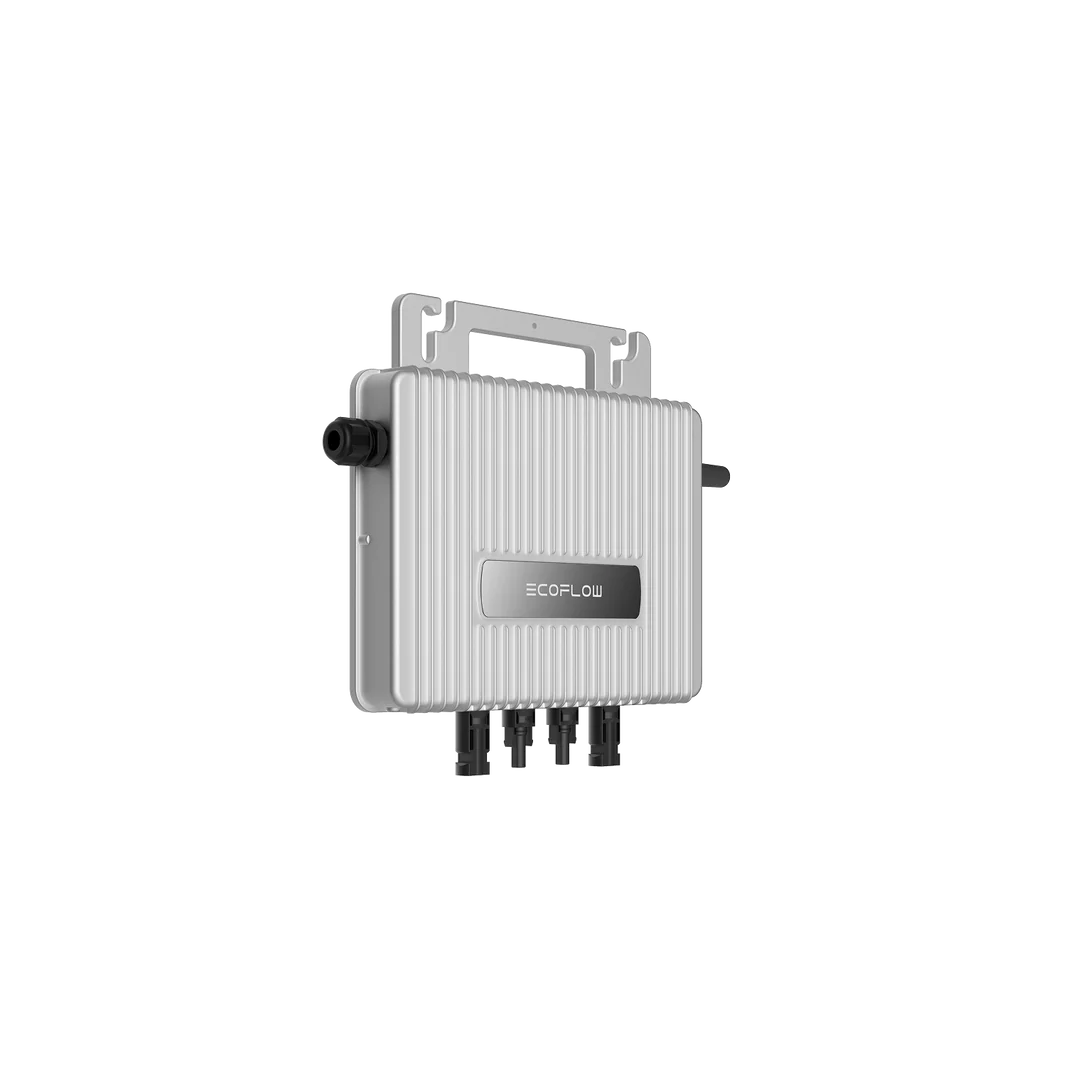

EcoFlow STREAM Microinverter

A moderate temperature increase during operation is normal and will not impact product longevity. The system undergoes rigorous testing and incorporates a multi-stage thermal management system. For safety and performance, install the unit in a well-ventilated, non-sun-exposed area, away from children/pets.

On the EcoFlow app, you can view real-time statistics of energy generation.

Yes, third-party solar panels are compatible if they meet the PV input specifications and use MC4 connectors. The input range per PV port is:Operating Voltage: 16-60VOperating Current: ≤16A

When connecting multiple solar panels in series or parallel, ensure that the maximum operating voltage (V) and maximum operating current (I) of each panel group do not exceed the limits of a single PV port on the STREAM Microinverter:Maximum Operating Voltage: 60VMaximum Operating Current: 16AIf you require extension or parallel cables for solar panels, they can be purchased separately from EcoFlow.Additionally, each group of solar panels connected in series or parallel must have consistent Maximum Operating Voltage (V) and Maximum Operating Current (I).Typical compatible solar panel specifications per PV port group: 200W-600W.

The STREAM Microinverter is exclusively compatible with products from the STREAM series. For a more intelligent and higher-yield system experience, we recommend purchasing additional STREAM series products.

If your system consists solely of the STREAM Microinverter, excess solar power will be fed into the grid.

EcoFlow provides AC cables with an equipment grounding conductor/grounding plug. If the cable is plugged into a socket that is properly installed and grounded according to all local codes and regulations, the device will be correctly grounded.If you are unsure about the socket’s grounding status or if local regulations mandate specific grounding standards, contact a qualified electrician to establish proper grounding via the product’s grounding terminal. For detailed procedures, contact EcoFlow technical support.

The system can be installed and maintained by users themselves. However, if you are in the UK, due to local regulations, the BKW DIY cable used with the Stream Microinverter must be connected to the distribution board. This operation requires a professional installer or electrician.

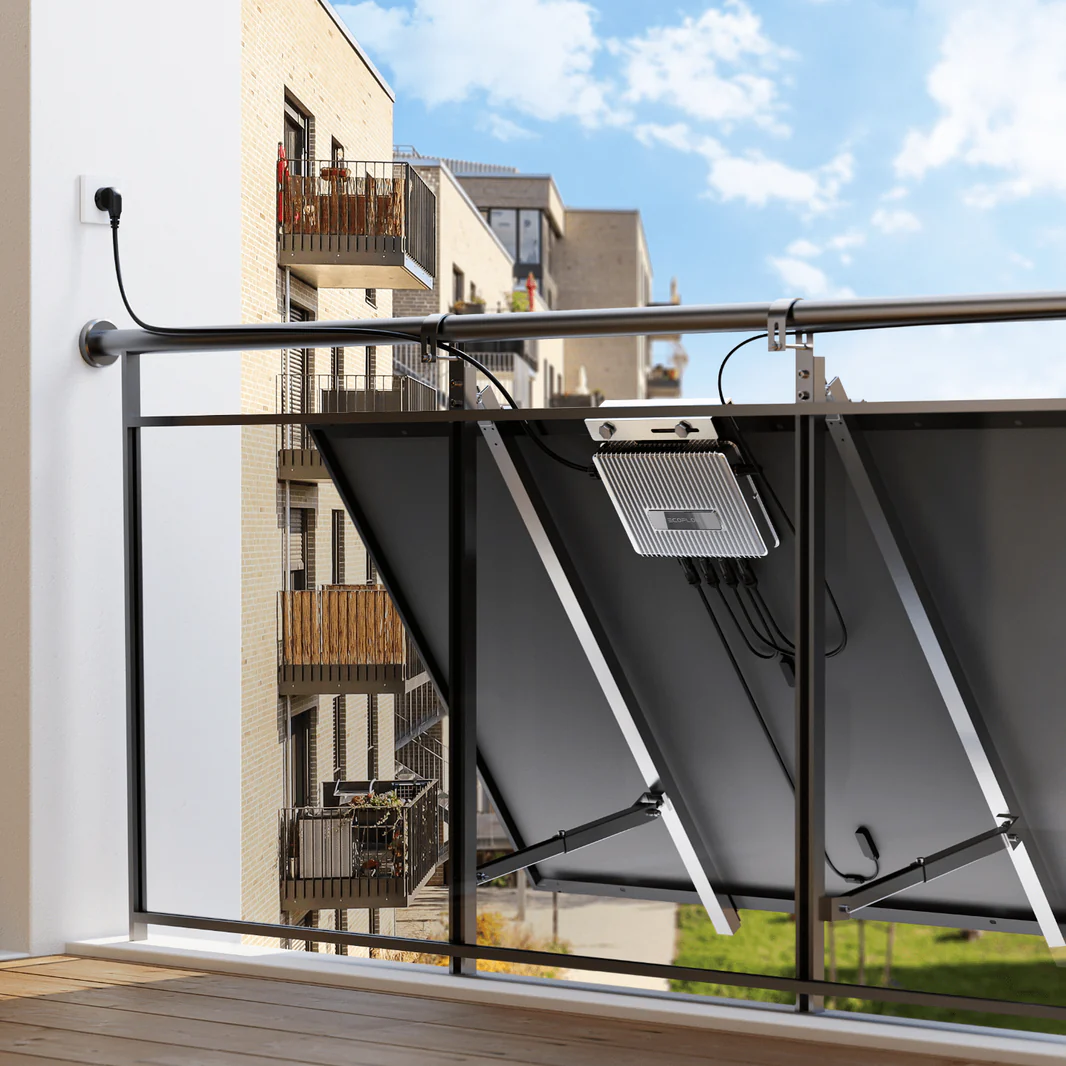

Yes. You can purchase the PV Clamp Holder to install the STREAM Microinverter on rigid solar panels with a thickness of 30mm-35mm.

For safety reasons, the STREAM Microinverter will automatically detect grid power anomalies and stop power output during a blackout.

Due to safety regulations, this is not recommended.

It is advised to purchase or use them in compliance with local laws and regulations.

The STREAM Microinverter has an IP67 rating and can be used indoors/outdoors. We recommend installing it in a well-ventilated, shaded, and cool location.

Currently, it only supports 2.4GHz WiFi.

Yes, it can be configured via the EcoFlow app. Path: Space > Settings > Maximum Output Power.

Please scan the app QR code in the Quick Start Guide or click to download the EcoFlow app to activate and bind the device. [Download]
